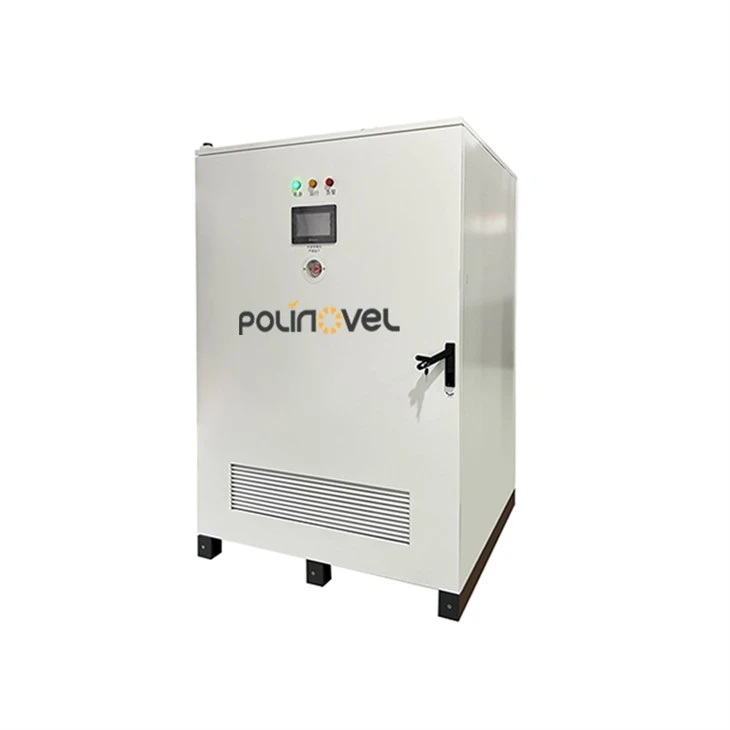

Dispela 60 kW 121 kWh Outdoor Cabinet Energy Storage System i gat wanpela bateri pek, pawa konvesen sistem (PCS), eneji menesmen sistem (EMS), na gutpela 'thermal control' insait long wanpela 'weather-resistant cabinet, na i save givim gutpela wok insait long olgeta ausait envairomen.
Modular all-in-one disain bilong en i mekim wok bilong putim na lukautim i kamap isi na tu i sapotim gutpela grid koneksen, 'peak shaving', na 'backup power' bilong mekim wok i no gat bikpela pe.
Em i gutpela long ol nid bilong yu long kisim pawa
Eneji Saplai we i save go het na gutpela
121 kWh kapasiti na 60 kW autput i mekim pawa i no ken bagarap long ol bikpela hevi, na i sapotim grid stebiliti na daunim taim bilong wok.
Gutpela Gutpela na Smatpela Kontrol
Klostu 99% pawa konvesen efisiensi na edvans EMS kodinesen i save mekim gutpela yusim bilong eneji, daunim kos bilong pawa na mekim wok i kamap gutpela moa.
Gutpela Sefti Proteksen
Dispela sistem i gat planti -level proteksen na gutpela wok bilong sekim, na dispela sistem i mekim wok gut aninit long olgeta kondisen na i daunim ol wok mentenens.
Strongpela Outdoa Adaptability
Ol i wokim wantaim ol strongpela komponen na ausait-reit proteksen long wok gut long ol hatpela ples, na mekim gutpela wok long olgeta yia-.
Spesifikasen
Bateri Paramita
| Model | CBS120 |
| Reit Voltej | 806.4V |
| Reit Kapasiti | 150Ah |
| Eneji | 121KWH |
| Opereting Voltej Range | 655-920V |
| Seris na Paralel Koneksen | 1P252S |
Sistem Paramita
| Koneksen | 3P+N+PE |
| Reit Pawa | 60KW |
| Grid Voltage Range | 400V±15% |
| Maksimum Konvesen Efisiensi | 98.9% |
| Reit Frekwensi | 50/60Hz |
| Grid Frekwensi Renj | 47Hz-52Hz/56Hz-62Hz |
| Karent Total Harmonik Distorsen | Liklik o wankain olsem 3% long reit pawa |
| DC Komponen | <0.5% of rated output current |
| Pawa Fakta | >0.99 |
Jeneral Paramita
| Komyunikesen | RS232/RS485/WiFi/4G/Ethernet |
| Sistem bilong mekim kol | Kulim win |
| Sistem bilong kilim paia | Perfluorohexanone |
| Tempereja bilong wok | -25~50℃ (derating >40 digri) |
| Tempereja bilong putim | -25~55 digri |
| Reletiv humiditi | 5%~95% (non-condensing) |
| Wok altitude | ≤4000m (derating >2000m ) |
| Nois | <70dB |
| IP Gret | IP55 |
| Sais (W*D*H) | 1200*1200*1800mm (47.2*47.2*70.9in) |
| Weit | 1.5ton |
Ol bikpela inveta bren i stap long lista
Ol bateri bilong mipela i stap long ofisel lista olsem ol i ken wok wantaim long planti kampani i save wokim ol 'inverter' long wol. Olgeta wan wan prodak i bin go insait long strongpela tes na validesen long lukim olsem i gat gutpela toktok, gutpela wok, na i ken wok gut wantaim ol kain kain inveta pletfom.
Sistem Akiteksa
CBS120 i yusim wanpela gutpela na isipela 'architecture' we i mekim gutpela menesmen bilong eneji na gutpela wok:
EMS Eneji Menesmen Pletfom
Ethernet na 4G Komyunikesen
PCS (Bidirectional Power Converter) + BMS (Battery Management System)
Grid/Lod Bidaireksenel Pawa Regulesen
Ol samting bilong bodi na envairomen
Ol sais
1200×1200×1800mm (W×D×H)
Weit
1500kg
IP Reting
IP55 (proteksen bilong ausait)
Nois Level
Liklik o wankain olsem 70dB @1 mita
Tempereja bilong wok
-20 digri i go long 50 digri (-4 digri F i go long 122 digri F)
Tempereja bilong Stoa
-25 digri i go long 55 digri (-13 digri F i go long 131 digri F)
Relative Humidity
5~95% (non-condensing)
Opereting Altitude
<4000m (derating >2000m)
Sefti na Proteksen Sistem
Menesmen bilong Bateri
BMS akiteksa wantaim wanwan sel monitoring
Pasin bilong daunim paia
Otometik perfluorohexanone sistem bilong kukim paia
Menesmen bilong hat
Gutpela ea kondisen
Ol wok bilong lukautim
Ovachaj/overdischarge/overcurrent/short circuit/insulation detection/surge protection
Ol bikpela wok
Ol gutpela wok we ol i wokim bilong mekim wok gut long eneji na sistem i ken wok gut.
Tudaireksenel Pawa Konvesen
I winim seamless AC/DC tupela sait konvesen wantaim<20ms response time for charge/discharge switching. Features automatic grid-connected and off-grid mode transition, capable of supporting 100% rated load independently in islanded operation.
Bisnis Veliu
I stretim ol hevi bilong grid senis, na sevim 25-40% pawa kos long wanwan yia long rot bilong 'peak shaving'
Ultra-taim bilong bekim hariap tru (<20ms)
Seamless grid-connected/off-grid transition
100% reit lod sapot long ailan mod
Gutpela Menesmen bilong Eneji (EMS)
Otometik sasim/discharge strateji we i bihainim ol 'electricity tarif curves' na 'load forecasting'. I sapotim 6-pela opereting mod we i gat 'peak-valley arbitrage', 'demand control', na 'solar self-consumption, we yu ken stretim longwe long rot bilong Web/APP intafeis.
Bisnis Veliu
I mekim gutpela wok long eneji, na sotim invesmen pebek i go long 3-5 yia
Otometed tariff-based optimaisesen
6-pela rot bilong wok we yu ken stretim
Rimot konfiguresen long Web/APP
Hierarchical Battery Management (BMS)
I yusim BMU+CBMS tu-taia akiteksa wantaim 'real-taim monitoring bilong 252 wanwan sel (voltej/temperature/SOC). Aktiv balens wok i save lukautim sel senis<30mV, extending battery lifespan by 20%.
Bisnis Veliu
I mekim sistem i wok gut moa, na i daunim ol kos bilong mentenens long 60%
Tupela-taia BMU+CBMS akitektsa
Wanwan wok glasim bilong 252 sel
Active balancing (cell variance<30mV)
Multi-layer Safety Protection
Em i gat wok bilong sekim tempereja, painim smok, na sistem bilong pasim paia long 'perfluorohexanone'. I save kirapim alam na katim pawa insait long 5-pela seken bihain long ol i painimaut wanpela samting i no stret. Gutpela 'thermal control' i save holim 'battery temperature' long 25±5 digri 'operating range'.
Bisnis Veliu
Mekim gut ol wokman na ol samting bilong yu, na daunim ol insurens prais
Integreted tempereja na smok monitoring
Kwikpela 5-seken anomali bekim
Gutpela kontrol bilong hat (25±5 digri)
Ol Scenario bilong Aplikesen
Ol kain kain rot bilong putim pawa bilong ol kain kain indastriel na komesel nid.
Indastrial Peak Seving & Dimand Menesmen
Wok
Ol ples bilong wokim ol samting i save sasim long taim bilong 'off-peak aua na rausim long taim bilong 'peak' long givim pawa long ol prodaksen lain, na inap long 2-pela ful sasim/discharge saikel long wan wan de
Ol i stretim ol hevi
Ol bikpela 'peak demand charges' i save mekim prais bilong pawa i go antap tru
Ol bikpela samting
Taim-bilong-yusim 'automated charge/discharge' strateji na 'demand management'
Ol samting yu ting bai kamap
Daunim ol bikpela askim na olgeta pawa ekspens, na mekim wok i kamap gutpela moa
Microgrid Bekap Pawa Saplai
Wok
UPS i senisim ol bikpela samting olsem ol data senta o haus sik, na i givim gutpela pawa insait long 1 seken na i sapotim wok i go het yet long ol bikpela samting
Ol i stretim ol hevi
Ol disel jenereta i save kirap hariap, nois i save kamap hariap, i gat bikpela wok mentenens, na ol hevi bilong envairomen
Ol bikpela samting
Switsim hariap tru, wok i no gat nois, na i no nidim planti wok mentenens
Ol samting yu ting bai kamap
Bikpela pawa reliabiliti, daunim taim bilong wok, liklik hevi bilong wok, na nogat ol pipia i save kamap long taim bilong bek-ap operesen
Solar PV Energy Storage Integration
Wok
Sola PV we i stap antap long rup o graun wantaim stoa bilong kisim planti jeneresen na rilisim long taim we planti manmeri i laikim
Ol i stretim ol hevi
Nogat wankain namel long sola jeneresen na konsumsen i save daunim self-konsumsen na i save daunim ROI
Ol bikpela samting
PV grid integresen, kodineted storage kontrol, pawa smuting, na ramp rate menesmen
Ol samting yu ting bai kamap
Gutpela yusim bilong sola, gutpela pawa saplai, na gutpela menesmen bilong eneji
EV Charging Station Demand Control
Wok
Ol 'fast charging' stesin we i gat 'storage' long givim bikpela pawa kompensesen taim planti 'charger' i wok wantaim
Ol i stretim ol hevi
Hai-pawa sasing i winim transfoma kapasiti, na i nidim bikpela pe bilong grid apgret
Ol bikpela samting
'Peak shaving', 'transformer overload protection', na 'charging station energy management'
Ol samting yu ting bai kamap
I daunim ol grid koneksen rikwaemen, i abrusim ol kostim infrastraksa apgret, na i sotim taim bilong kisim winmani long ol wok bilong sasim
Diploimen na Operesen
Ol wok bilong putim na lukautim gut ol samting bilong sistem i ken wok gut.
Ausait Graun Maunten
Em i gutpela long ol op spes we i no gat planti wok konstraksen
Ol gutpela samting
Nogat nid long wokim haus, 2-de instolesen, liklik pe bilong wan wan yunit
Ol Gutpela Situesen
Ol indastriel pak/ol stesin bilong sasim kar i gat inap spes
Putim insait long haus
Gutpela envairomen bilong ol 'sensitive' ples
Ol gutpela samting
Envairomen we i gat kontrol, 15% laip bilong ol ikwipmen i go longpela taim, gutpela mentenens
Ol Gutpela Situesen
Ol samting we i gat rum/stoahaus spes i stap
Kontena Integresen
Mobail solusen bilong ol nid bilong sotpela taim o ol nid we i save senis senis
Ol gutpela samting
Gutpela mobiliti, hariap muv, gutpela proteksen reiting
Ol Gutpela Situesen
Ol aplikesen we i gat pawa/rental bisnis/projek-
Netwok Plening Gaidens
Grid Koneksen
I nidim 400V tripela-feis faiv-waia seket, seket breka reit karent Bikpela o wankain olsem 100A, kebol kros-seksen Bikpela moa o wankain olsem 35mm2
Komyunikesen Netwok
Ethernet (gutpela) o 4G waiales koneksen, bandwidth rikwaemen Bikpela o wankain olsem 2Mbps, sapotim dainamik IP
Ol spesing rikwaemen
Bikpela o wankain olsem 1m namel long ol paralel yunit, Bikpela o wankain olsem 0.5m long ol wol, na mekim hat i lus na i gat rot bilong lukautim
Infrastraksa
Simen faundesen lod kapasiti Bikpela o wankain olsem 2 ton/m2, instolesen levelnes Liklik o wankain olsem 5mm/m, ol ausait instolesen i nidim ren shelta
Sediul bilong Mentenens
| Frikwensi | Ol wok | Taim |
|---|---|---|
| Olgeta de | Monitarim status bilong sistem, prosesim alam | 5 minit |
| Long olgeta wik | Rimot data inspeksen, pefomens analisis ripot | 20 minit |
| Long olgeta mun | Sekim long ples, klinim ol 'ventilation' na ol 'heat sink' | 60 minit |
| Kwata | Sekim ol samting bilong pasim, sekim insulesen, BMS kalibresen | 2 aua |
| Olgeta yia | Dip mentenens, ol 'firmware' apgret, ol 'preventive riplesmen' | 4-pela aua |
Kost-Benefit Analisis
Gutpela wok painimaut long sait bilong mani we i soim winmani bilong invesmen na longpela taim veliu.
Invesmen Brekdaun
Pe bilong ol samting
Em i karamapim bateri, PCS, EMS, na ausait kebinet
Instolesen Sevis
Insait long en i gat trenspot, instolesen, na komisin.
Laisens bilong sofwet
Ol fri sofwet apdet na klaut pletfom sevis i stap insait
Ol wok bilong olgeta yia
Em i gat pawa, insurens, na ol spesel hap bilong wok i go het
Kost Sevings Komparisen (vs Grid-Only Supply)
Ol Benefit bilong Sevings Long Wanwan Yia
Elektrisiti Optimaisesen
Daunim kos bilong eneji long rot bilong
'peak seving' na 'demand management'
Infrastraksa Invesmen Avoidens
I daunim nid bilong
trensfoma o grid apgret
Daunim ol kos bilong lukautim
I daunim ol operesenel ekspens taim yumi skelim wantaim ol konvensenel disel jenereta
Ol Gutpela Samting Bilong Envairomen
Sapotim ol wok bilong daunim kabon na helpim ol mak bilong sastenebiliti.
vs Lead-Acid Battery Annual Comparison
Pe bilong senisim
Ol 'lead-acid' bateri i mas senisim olgeta 3-5 yia, tasol LiFePO₄ i save stap inap 10-15 yia, na dispela i save daunim taim bilong senisim
Lus bilong Efisiensi
LiFePO₄ i save givim bikpela 'round-trip efficiency (≈88%) winim 'lead-acid' (≈70%), na i save daunim lus bilong eneji
Mentenens Frekwensi
LiFePO₄ em i no gat wok long lukautim, tasol 'lead-acid' i nidim ol 'electrolyte' sekim na 'equalization' oltaim
Ol gutpela samting bilong resis
Olsem wanem CBS120 i winim ol tradisenel solusen na ol kompetisen long maket.
vs Tradisenel Lead-Asid Bateri Solusen
| Dimensen | CBS120 (LiFePO4) | Lead-Acid Battery |
|---|---|---|
| Saiklon Laip | 4000-6000 saikel | 300-500 saikel |
| Gutpela Sasim | 95-98% | 70-80% |
| Spit bilong sasim | 0.5C (2-aua ful sas) | 0.2C (5-aua ful sas) |
| Mentenens | Maintenance-fri, remote monitoring | Electrolyte long olgeta mun, na olgeta kwata i wankain |
| Envairomen Impak | Eco-prenli | Ol pipia nogut |
| Kost bilong wan wan saikel | Daunbilo tru | Nambawan |
CBS120 Ol narakain gutpela samting
Modular Disain
Ol indipenden bateri modul wantaim module-level menesmen aninit long PCS kontrol. Wanpela modul tasol i bagarap i no inap long bagarapim wok bilong sistem
Availability >99.5%
Daunim taim bilong sistem i no wok
IP55 Proteksen bilong ausait
Nogat rum bilong ol ikwipmen i mas stap. Instolesen ausait stret i save daunim hevi bilong sivil konstraksen na instolesen
Proteksen long das/wara IP55 reiting
Em i save senis long -20 digri ~50 digri long olgeta klaimet envairomen
Perfluorohexanone Fire Suppression
Perfluorohexanone 'extinguishing agent' we i no bagarapim envairomen i senisim 'heptafluoropropane' bilong bipo
Kwikpela bekim bilong daunim
Nogat bagarap long bateri na yu ken yusim gen
I bihainim ol nupela standet bilong paia sefti
Sevim pawa wantaim CBS120
CBS120 Bateri Eneji Stoa Sistem i save givim gutpela pe long rot bilong 'lithium iron phosphate' teknoloji na gutpela menesmen bilong eneji:
Sevings long kos bilong pawa
Bikpela daunim long kos bilong pawa long rot bilong 'peak shaving' na 'demand management'.
Pebek bilong invesmen
Indastri-lida long hariap ROI, inap long kamap insait long sampela yia bihainim yusim senario.
Mentenens-Fri Operesen15-yia disain laip wantaim 4000-6000 saikel laipspan na rimot intelijent monitoring
Sistem i stap
99.5% aptaim i kamap long modular disain na multi-leya sefti proteksen
Em i gutpela long ol kampani bilong wokim ol samting, ol bisnis, ol data senta, na ol 'charging station' opereta we i laik daunim pe bilong pawa, strongim pawa, na insait long ol 'demand response' program. Planti taim pebek i save kamap insait long 2-3 yia, wantaim longpela taim winmani i winim tru namba wan invesmen.
