96kWh–209kWh Hai Voltej Bateri Eneji Stoa Sistem
Ol i wokim bilong ol komesel projek we i nidim moa pawa na dippela stoa winim ol 'entry-level sistem inap long givim. Dispela 'rack-mounted LiFePO₄ bateri sistem i save skel long 96kWh i go long 209kWh - na i karamapim 100kWh, 150kWh, na 200kWh konfiguresen - long lukautim olgeta samting stat long multi-zon HVAC i go long wokim ol benk na lait lain.
Sistem i ron long 150A kontinu (200A maks) na i save lukautim 220A pik discharge bilong ol moto statap. Ol LiFePO₄ sel, gutpela BMS, na tripel-rilei proteksen i mekim em i wok gut long 6,000+ saikel - wantaim plug-na-plei kompatibiliti bilong 12-pela bikpela inveta bren we i gat Deye, Growatt, na SMA.
Em i gutpela long ol nid bilong yu long kisim pawa
150A/200A/220A Bikpela Karent bilong Motor-Hevi Lod
150A i gutpela, 200A maks kontinu, 220A peak discharge (3 seken). Dispela 'current capacity' em i 50% antap long 60-130kWh series - inap long kisim 'motor inrush current' long ol 'compressor', 'elevator', na 'water pump' na i no inap long mekim ol 'break' i pundaun o kamapim 'brownout'. Em i gutpela long ol faktori, ol soping senta, na ol ples we i gat planti wok bilong kirapim ol samting.
96kWh i go long 209kWh Modular Battery Scaling (307V–665V)
Putim 6-pela i go inap 13-pela bateri modul long wanpela seris long kisim 96kWh i go inap 209kWh. Voltej bilong sistem i save go antap (307V i go long 665V), na i stap insait long opereting windo bilong planti ol komesel haibrid inveta. Stat wantaim 100kWh konfiguresen tude, skruim i go long 150kWh o 200kWh taim diman i gro - i no gat wok long senisim 'rack'.
Tripela Rilei Proteksen bilong Hai-Voltej Sefti
Positif rilei, negatif rilei, na seket breka i wok wantaim olsem wanpela sefti akiteksa we i no gat wok long en. Wantaim tripela 'relay' proteksen, tupela indipenden leia i stap yet maski wanpela 'relay' i bagarap. Long ol hai-karent komesel bateri sistem, dispela 'redundancy' i save stopim ol bagarap long ol ikwipmen na ol sefti insiden we ol 'dual-relay' disain i no inap long kisim.
BMS Otometik Sel Balansing na Monitoring
BMS we i stap insait long en i save lukautim ol 'charge/discharge cycles' otomatikli - na i save skelim 'cell voltage' na 'current', na sekim tempereja long olgeta modul, na katim aut pastaim long ol i winim mak. Nogat wok long han bilong lukautim pawa long olgeta de.
6,000+ Saiklon LaipPO₄ Bateri Laip
LiFePO₄ kemistri i save givim gutpela 'thermal performance' na longpela sevis laip. Long 0.5C 'charge/discharge', tingim 6,000 saikel pastaim long kapasiti i go daun long 70%, na dispela i daunim olgeta kos bilong onasip tru taim yumi skelim wantaim ol 'lead-asid bateri benk o sotpela -life 'lithium alternatives'.

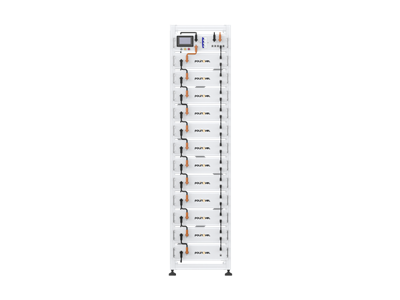

19-Inch Rack Mount, Front-Access Installation
Standet 19-inch rak-mounted disain wantaim fran-akses waia. Ol bateri modul i go insait, ol kebol i konekt long fran, na sistem i kirap. Planti wok bilong putim ol samting i save pinis insait long wanpela de tasol - yu no nidim ol spesel tul.
Ol Scenario bilong Aplikesen
Peak Seving & Demand Response for Commercial Facilities
Sasim long nait long 'off-pik reit, rausim long 150A long taim bilong bikpela diman. Wanpela 150kWh LiFePO₄ bateri rek we i save ron wanpela taim long olgeta de long $0.17/kWh pik-i go long-off-pik spred i save sevim samting olsem $750–$800/mun long wanpela namel-faktori o haus kago -sais -sais - wantaim bikpela mak bilong takis planti deili pik, ol riten skel bihainim dispela. Em i gutpela tru olsem wanpela 'commercial battery storage solution' bilong 'load shedding' long Saut Afrika, we ol pawa kat we i no inap kamap bipo i mekim na ol i putim pawa i stap olsem wanpela samting we i mas i stap long sait bilong mani na wok.
Solar Self-Konsumsen bilong ol faktori na ol haus kago
Putim wantaim PV antap long rup bilong putim ol samting we i kamap long san na taim san i go daun. Wanpela 100kW PV arei wantaim 150kWh bateri stoa i save winim 85-95% self-konsumsen vs 30-40% sapos i no gat stoa. Ol faktori na ol 'logistics park' long Saut-is Esia, Midel Is, na Afrika i save yusim dispela sola bateri stoa setup long daunim grid dipendensi na lokim eneji kos. Wok wantaim Deye, Growatt, GoodWe, Victron, na8-pela narapela inveta brend we i ken wok wantaimmipela i bin verifai long rot bilong RS485/CAN protokol.
Kritikel Lod Bekap: Ol Eleveta, Kompresa na Kol Sen
220A 'peak discharge' i save lukautim 'elevator motor startup surge', 'cold-chain compressor inrush current', na ol 'water pump loads' na i no save pundaun. Wanpela 150kWh sistem i save givim 4-6 aua bilong bek-ap pawa bilong bateri long wanpela 25-35kW kritikal lod. Ol haus sik, ol data senta, na ol telekom taua long ol rijon olsem Saut Afrika na Naijiria i yusim dispela olsem wanpela gutpela bek-ap - na wanpela moden LiFePO₄ senis bilong ol lapun lid-asid bateri benk we i nidim mentenens oltaim.
Off-Grid & Microgrid Battery Storage
Mikrogrid bateri stoa long Filipins, of-grid bateri sistem long Naijiria, ol wik-grid zon long Afrika - ol dispela envairomen i nidim eneji stoa we i ken go antap wantaim askim. Stat long 96kWh (HV96) na skruim i go antap long 209kWh (HV209) long rot bilong putim ol bateri modul long seris, na noken senisim ol 'rack' o 'rewiring'. Wanwan step i go antap i save putim samting olsem 16kWh bilong sistem eneji, na ol i ken putim wanpela nupela modul insait long 2-pela aua tasol.
Spesifikasen
| Model | HV96 | HV112 | HV128 | HV144 |
| Bateri Modul Namba long ol lain | 6 | 7 | 8 | 9 |
| Sistem Nominal Voltej | 307.2V | 358.4V | 409.6V | 460.8V |
| Sistem Opereting Min.Voltej | 268.8V | 313.6V | 358.4V | 403.2V |
| Sistem Opereting Maks.Voltej | 345.6V | 403.2V | 460.8V | 518.4V |
| Sistem Eneji | 96.5kWh | 112.5kWh | 128.6kWh | 144.7kWh |
| Eneji we yu ken yusim long sistem |
91.6kWh
|
106.9kWh
|
122.2kWh
|
137.5kWh
|
| Sais (WxDxH) | 840*590*2095mm | 840*1190*2095mm | ||
| Hevi Klostu | 867.5kg | 989.5kg | 1111.5kg | 1233.5kg |
| Mak bilong lek | 0.84*0.59m | 0.84*1.19m | ||
| Model | HV160 | HV176 | HV192 | HV209 |
| Bateri Modul Namba long ol lain | 10 | 11 | 12 | 13 |
| Sistem Nominal Voltej | 512V | 563.2V | 614.4V | 665.6V |
| Sistem Opereting Min.Voltej | 448V | 492.8V | 537.6V | 582.4V |
| Sistem Opereting Maks.Voltej | 576V | 633.6V | 691.2V | 748.8V |
| Sistem Eneji | 160.8kWh | 176.8kWh | 192.9kWh | 209kWh |
| Eneji we yu ken yusim long sistem | 152.7kWh | 168kWh | 183.3kWh | 198.5kWh |
| Sais (WxDxH) | 840*1190*2095mm | |||
| Hevi Klostu | 1355.5kg | 1477.5kg | 1599.5kg | 1721.5kg |
| Mak bilong lek | 0.84*1.19m | |||
| Bateri Modul | 51.2V 100Ah | |||
| Rekomenim Sasim/Rausim Karent | 150/150A | |||
| Maks Sas/Disjaj Karent | 200/200A | |||
| Peak Discharge (3S,25 degree) | 220/220A | |||
| Ples bilong putim | Rack Mounting | |||
| Rekomenim Dip bilong Discharge | Liklik o wankain olsem 95% | |||
| Saiklon Laip | 6000 (25℃,0.5C/0.5C,EOL70%) | |||
| Kain bilong soim | LED+Tasim LCD | |||
| Tripela Proteksen | Positif Rile + Negatif Rile + Breka | |||
| Namba bilong ol bikpela seket rilei | 3 | |||
| Heat Dissipation | Fan i mekim kol | |||
| Setifikesen | UN38.3/CE/CE-EMC | |||
| Tempereja bilong wok | Sas:0~55 digri /Dischas:-20~55 digri | |||
| Tempereja bilong Stoa | 0~35 digri | |||
| Komyunikesen Pot | RS485/CAN/WiFi | |||
| Humidity (RH) | 5%~80% | |||
| Altitude | Liklik o wankain olsem 3000m | |||
| IP Reting bilong Banis | IP20 | |||
| Nois | ＜50dB | |||
96-209 kWh vs 60-130 kWh: Wanem Bateri Sistem i Fitim Lod Bilong Yu?
Wankain sais bilong 'rack', wankain RS485/CAN protokol, wankain 'inverter compatibility'. Difrens em long 'current rating' na 'capacity ceiling' - makim sapos ples bilong yu i save ranim ol lait komesel lod o ol moto-hevi indastrial ikwipmen.
| Paramita | 60-130 kWh Series | 96-209 kWh Series |
| Rekomend Karent | 100 / 100 A | 150 / 150 A |
| Maks Karent | 150 / 200 A | 200 / 200 A |
| Peak Discharge (3s) | 200 / 220 A | 220 / 220 A |
| Mak bilong inap | 63-136 kWh | 96.5–209 kWh |
| Maks Voltej | 748.8 V | 748.8 V |
| Gutpela Long | Ol liklik opis, stua, lait komesal | Ol faktori, ol stua, ol bikpela kago |
Em i ranim pinis60-130 kWh bateri sistem? Long apgredim i go long 96-209 kWh series em i stretpela - wankain 'rack', wankain BMS 'logic'. Senisim ol modul we i gat bikpela -reit long kisim 50% moa 'current capacity'.
Inverter Compatibility we ol i bin tok orait long en
Mipela i bin testim ol 'communication protocols' (RS485/CAN) na 'protection coordination' wantaim 12-pela 'inverter brands' long ful 150A / 200A opereting ranj. Maski yu nidim wanpela hai voltej bateri we i ken wok wantaim Deye, wanpela Growatt we i ken wok wantaim LiFePO₄ rak, o stoa bilong SMA na Victron haibrid inveta - em i plug-na-plei. Ful validated list: Deye, Growatt, GoodWe, SMA, Victron, Sunsynk, Solis, SAJ, Afore, Phocos, TBB, na Studer. Sapos inveta bilong yu i no stap long dispela lista,go aut- ating mipela i bin traim pinis o mipela i ken ranim wanpela 'compatibility check'.
Ol askim we planti taim
Mi ken apgredim 60-130kWh bateri sistem i go long 96-209kWh seris na mi no senisim 'rack'?
Yes. Tupela series i yusim wankain 'rack size' (840 × 1190 × 2095 mm), wankain 'communication protocols' (RS485/CAN/WiFi), na wankain 'inverter compatibility list'. Senisim ol modul we i gat bikpela -reit, na BMS oto-i painimaut nupela konfiguresen. Nogat 'rewiring', nogat 'firmware' apdet.
Dispela bateri inap long kirapim 'elevator motor' na 'compressor inrush current'?
Sistem i save lukautim 220A 'peak discharge' inap long 3-pela seken - inap long karamapim 'inrush current' bilong planti ol komesel eleveta mota na ol 'refrigeration compressor'. Long ol lod we i stap longpela taim, 150A / 200A kontinu reiting i save holim sistem i stap gut na i no gat 'thermal derating'.
Olsem wanem 'commissioning' i wok wantaim Deye, Growatt, o ol narapela 'compatible inverters'?
Putim-na-plei. Deye, Growatt, GoodWe, SMA, Victron, na ol narapela 7-pela 'brand' i stap long 'validated compatibility list' bilong mipela, olsem na 'CAN protocol mapping' i stap pinis. Konektim ol kebol, onim pawa, na inveta bai luksave long bateri otomatik long rot bilong RS485 o CAN komunikesen.
Bilong wanem yu mas makim bikpela voltej na i no gat liklik voltej bateri stoa long ol komesel projek?
Long wankain pawa autput, bikpela voltej i min olsem karent i go daun - we i save daunim lus bilong ol kebol, larim ol kebol i kamap liklik, na mekim wok bilong inveta i kamap gutpela moa. Long olgeta samting antap long 30kW, planti ol komesel na indastriel inveta manifakta i save rekomendim hai voltej bateri akitek. Mipela i tok klia long ol samting we i save senis namel long ol 'high voltage' na 'low voltage' bateri sistem long moa ditelinsait long dispela atikol.
Hevi bilong HV209 em 1,700kg. Wanem ol samting we i mas kamap long plua bilong putim bateri long 'rack-?
Ol standet komesel-greid simen plua i save mekim dispela wok nating. Futprin em 0.84 × 1.19 m, olsem na hevi i go long 1 m2. Long ol 'upper-floa instolesen o olpela bilding, sekim 'structural rating' wantaim 'building engineer' bilong yu. Mipela i ken givim wanpela pepa bilong tilim kago sapos yu askim.
Olsem wanem 95% dip bilong discharge i save afektim LiFePO₄ bateri saikel laip?
DoD we ol i rekomendim em 95%, we i mekim ol sel i ken yusim gut na tu i lukautim longpela laip bilong ol sel. Sapos yu ran long DoD we i no dip tumas (olsem, 80%) dispela inap long skruim laip bilong saikel i go moa long 6,000 saikel - sampela instolesen i ripotim 8,000+ saikel long 80% DoD. Long narapela sait, sapos yu ran oltaim long 100% DoD dispela bai sotim laipspan. BMS i larim yu long stretim ol mak bilong DoD bihainim ol wok bilong yu: mak bilong eneji long olgeta de o mak bilong olgeta laiptaim kapasiti.
Olsem wanem tripela rilei proteksen i wankain olsem ol standet dual-rilei bateri sistem?
Planti ol bateri stoa sistem i save yusim tupela-rilei proteksen (gutpela na nogut). Dispela sistem i putim namba tri leia - wanpela 'circuit breaker'. Sapos 'positive relay' i no inap long op taim wanpela 'fault' i kamap, 'negative relay' na 'breaker' i save pasim 'circuit' yet. Dispela tripela rilei proteksen redundansi em i bikpela samting long ol hai-karent komesel bateri aplikesen we wanpela poin bilong feil inap long bagarapim ol ikwipmen o sefti insiden.
Hamas taim em i save kisim long putim 'rack-mounted battery storage?
Planti wok bilong putim ol samting i save pinis insait long wanpela de. 19-inch 'rack' i kamap pastaim long ol -modul - i go insait long ples bilong en, ol kebol i konektim long fran, na sistem i kirap. Yu no nidim ol spesel tul. Sapos yu wok long putim ol modul long wanpela sistem we i stap pinis, BMS bai painim nupela konfiguresen otomatik na i no gat manuel setup.
LiFePO₄ bateri stoa em i gutpela senis bilong 'lead-acid insait long ol 'commercial backup systems'?
Yes. LiFePO₄ (LFP) bateri i save givim 6,000+ saikel long 95% DoD, taim yumi skelim wantaim 500-800 saikel bilong ol lead-asid benk. Ol i no nidim wara, ol i no nidim ol 'equalization charges', na ol i ken karim bikpela tempereja. Long wankain eneji we yu ken yusim, wanpela LFP rak sistem i hevi liklik long 40% na i no save kisim planti spes long plua - na dispela i mekim em i kamap wanpela gutpela drop-long senisim ol komesel bek-ap aplikesen insait long ol haus sik, ol data senta, na ol telekom taua.
Wanem samting i save kamap taim wanpela bateri modul i bagarap? Yumi lusim olgeta sistem?
BMS i save sekim olgeta wan wan modul wanwan. Sapos wanpela modul i soim wanpela asua, sistem i save putim mak long en long LCD displei na long rot bilong RS485/CAN komunikesen intafeis. Long planti asua, yu ken rausim na senisim modul we i gat hevi na yu no pasim olgeta sistem. Mipela i rekomendim yu long putim wanpela spesel modul long-sait bilong ol bikpela instolesen.
Yu redi long skelim sais bilong komesel bateri stoa sistem bilong yu?
Yu ken tokim mipela long lod profail bilong yu na bai mipela i rekomendim stretpela konfiguresen - sapos yu nidim 100kWh, 150kWh, o 200kWh bilong 'rack-mounted LiFePO4 storage.
Bekim insait long 24 aua · MOQ: 1 yunit · OEM/ODM i stap
